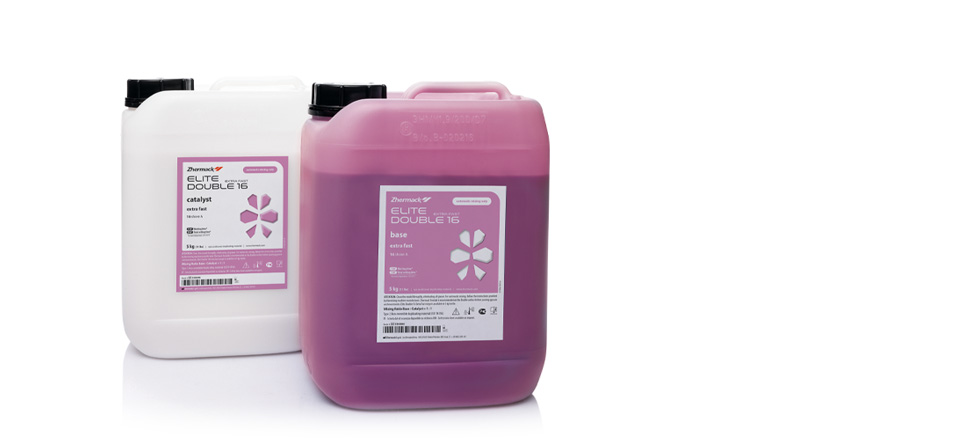

Elite Double 16 Extra Fast

Elite Double 16 Extra Fast

The Elite Double line includes a wide range of duplication silicones.

Designed to meet the lab technician’s different needs in both fixed and removable prosthesis applications. The range consists of 8 products. Elite Double has different colours, four different final hardnesses and three setting times: normal, fast and extra fast, the latter formulated specifically for automatic mixers. Elite Double retains high and constant fluidity throughout the working time, delivering a homogeneous bubble-free result.

Characteristics

• Resistance to stretching and tearing, including with thin thicknesses

• Accurate reproduction of detail

• High fluidity

• High dimensional stability over time

• High elastic recovery

Advantages

• Optimisation of working times, particularly when compared with duplication with hydrocolloids (setting time 5:00, 10:00, 20:00)

• The model can be duplicated a number of times, thanks to the dimensional stability over time and high elastic recovery

• Compatible with stones, polyurethane resins, acrylic resins and phosphate and alcohol-based investments

• High fluidity: does not require mixing in a vacuum

Zhermack recommends:

Doublemix: automatic mixer for duplication A-Silicones

Product features

ProductDuplication of cores,
integral ceramic investment
Duplication of models,
generally in gypsum and/or resin
Duplication of models,
controlled expansion investment
Duplication of models,
free expansion investment
Elite Double 8
Elite Double
16 Fast
Elite Double
16 Extra Fast
Elite Double 22
Elite Double
22 Fast
Elite Double
22 Extra Fast
Elite Double 32
Elite Double
32 Fast
ProductMixing
ratio
Manual
mixing
time*
(min:s)
Mechanical
mixing time with
vacuum mixer*
(min:s)
Working
time*
(min:s)
Setting
time*
(min:s)
Detail
reproduction
(μm)
Elastic
recovery
Linear
dimensional
change
(after 24 h)
Hardness
(Shore A)
Load at
break
Elongation
at break
Tear
resistance
Elite Double 81:11:000:3010:0020:00299.95 %0.05 %82 N/mm2380 %2.5 N/mm2
Elite Double
16 Fast
1:11:000:305:0010:00299.95 %0.05 %162.5 N/mm2550 %5 N/mm2
Elite Double
16 Extra Fast
1:1Automatic
mixer
Automatic
mixer
1:305:00299.95 %0.05 %162.5 N/mm2550 %5 N/mm2
Elite Double 221:11:000:3010:0020:00299.95 %0.05 %222.5 N/mm2450 %5 N/mm2
Elite Double
22 Fast
1:11:000:305:0010:00299.95 %0.05 %222.5 N/mm2450 %5 N/mm2
Elite Double
22 Extra Fast
1:1Automatic
mixer
Automatic
mixer
1:305:00299.95 %0.05 %222.5 N/mm2450 %5 N/mm2
Elite Double 321:11:000:3010:0020:00299.95 %0.05 %322.5 N/mm2350 %5 N/mm2
Elite Double
32 Fast
1:11:000:305:0010:00299.95 %0.05 %322.5 N/mm2350 %5 N/mm2

*The times mentioned above are intended from the start of the mixing phase at 23°C (73°F).



Packaging

CodeProductPackaging
C400848Elite Double 16 Extra Fast5 kg (Base) + 5 kg (Catalyst)
